Pancreatic Endocrinogenesis Reference Analysis

This notebook uses pancreas reference outputs produced from the provided stage-1 and stage-2 checkpoints. It reads checkpoint-derived reference CSV/H5AD/attention files and does not train new model weights.

from pathlib import Path

import anndata as ad
import matplotlib.pyplot as plt
import numpy as np
import scanpy as sc
import pandas as pd
from scipy import sparse

PROJECT = Path.cwd().resolve()
if PROJECT.name == "notebooks":
    PROJECT = PROJECT.parent

REFERENCE_DIR = PROJECT / "data" / "pancreas" / "reference_outputs"
CHECKPOINT_DIR = PROJECT / "data" / "pancreas" / "reference_checkpoints"
STAGE1_CKPT = CHECKPOINT_DIR / "pancreas_stage1.ckpt"
STAGE2_CKPT = CHECKPOINT_DIR / "pancreas_stage2.ckpt"
GENE_ORDER = CHECKPOINT_DIR / "pancreas_genes.txt"
STAGE1_CSV = REFERENCE_DIR / "pancreas_stage1_reference.csv"
STAGE2_CSV = REFERENCE_DIR / "pancreas_stage2_reference.csv"
ATTENTION_H5AD = REFERENCE_DIR / "pancreas_attention_scores.h5ad"
INSULIN_ACTIVITY_CSV = REFERENCE_DIR / "pancreas_insulin_signaling_attention_activity.csv"
MEAN_ATTENTION_DIR = REFERENCE_DIR / "pancreas_mean_attention_by_celltype"
BETA_MEAN_ATTENTION_NPZ = MEAN_ATTENTION_DIR / "Beta_mean_attention.npz"
FIGURE_DIR = PROJECT / "outputs" / "pancreas_reference_notebook_figures"
FIGURE_DIR.mkdir(parents=True, exist_ok=True)

required_paths = [
    STAGE1_CKPT,
    STAGE2_CKPT,
    GENE_ORDER,
    STAGE1_CSV,
    STAGE2_CSV,
    ATTENTION_H5AD,
    INSULIN_ACTIVITY_CSV,
    BETA_MEAN_ATTENTION_NPZ,
]
for path in required_paths:
    if not path.exists():
        raise FileNotFoundError(path)

CELLTYPE_ORDER = ["Ductal", "Ngn3Low", "Ngn3High", "Pre-endocrine", "Alpha", "Beta", "Delta", "Epsilon"]
RANK_GROUP_ORDER = ["Ngn3Low", "Beta", "Alpha", "Ductal", "Ngn3High", "Delta", "Epsilon", "Pre-endocrine"]
CELLTYPE_DISPLAY = {"Ngn3Low": "Ngn3Low", "Ngn3High": "Ngn3High"}

STAGE1_CSV, STAGE2_CSV, ATTENTION_H5AD, INSULIN_ACTIVITY_CSV, BETA_MEAN_ATTENTION_NPZ, FIGURE_DIR

What The Attention Score Means

pancreas_attention_scores.h5ad stores per-cell attention-derived regulator scores for the pancreas reference. For each regulator in the prior network, the score sums attention from that regulator to its prior targets, after retaining regulators that appear in the top 10% attention columns for at least one target gene. Rows are cells and columns are regulators.

For reproducible checkpoint-based analysis, keep the gene order paired with the released pancreas checkpoint and run inference/export from the provided checkpoint weights. The gene set can be identical while the index order differs, and checkpoint attention matrices are index-aligned.

Shared Helpers

def as_dense(matrix):
    return matrix.toarray() if sparse.issparse(matrix) else np.asarray(matrix)


def minmax_columns(values):
    values = np.asarray(values, dtype=float)
    mins = np.nanmin(values, axis=0)
    maxs = np.nanmax(values, axis=0)
    ranges = maxs - mins
    ranges[ranges == 0] = 1.0
    return (values - mins) / ranges


def display_celltype(name):
    return CELLTYPE_DISPLAY.get(name, name)


def title_case_gene(name):
    return name[:1].upper() + name[1:].lower()


def require_genes(adata, genes):
    genes_upper = [gene.upper() for gene in genes]
    available = [gene for gene in genes_upper if gene in adata.var_names]
    missing = [gene for gene in genes_upper if gene not in adata.var_names]
    if missing:
        print("Missing genes:", missing)
    return available

Reference Output Preview

preview_cols = ["cellIndex", "gene_name", "unsplice", "splice", "unsplice_predict", "splice_predict", "clusters"]
stage1_preview = pd.read_csv(STAGE1_CSV, usecols=preview_cols, nrows=5)
stage2_preview = pd.read_csv(STAGE2_CSV, usecols=preview_cols, nrows=5)

display(stage1_preview)
display(stage2_preview)

	cellIndex	gene_name	unsplice	splice	unsplice_predict	splice_predict	clusters
0	0	0610010F05RIK	0.188744	0.240883	0.285733	0.230735	Pre-endocrine
1	1	0610010F05RIK	0.096946	0.108301	0.229186	0.108476	Ductal
2	2	0610010F05RIK	0.183575	0.251075	0.282041	0.235197	Alpha
3	3	0610010F05RIK	0.094704	0.174730	0.227560	0.150557	Ductal
4	4	0610010F05RIK	0.048288	0.233265	0.200468	0.170477	Ngn3 high EP

	cellIndex	gene_name	unsplice	splice	unsplice_predict	splice_predict	clusters
0	0	0610010F05RIK	0.188744	0.240883	0.170604	0.231052	Pre-endocrine
1	1	0610010F05RIK	0.096946	0.108301	0.104260	0.108127	Ductal
2	2	0610010F05RIK	0.183575	0.251075	0.163577	0.236625	Alpha
3	3	0610010F05RIK	0.094704	0.174730	0.101195	0.153775	Ductal
4	4	0610010F05RIK	0.048288	0.233265	0.076497	0.178194	Ngn3 high EP

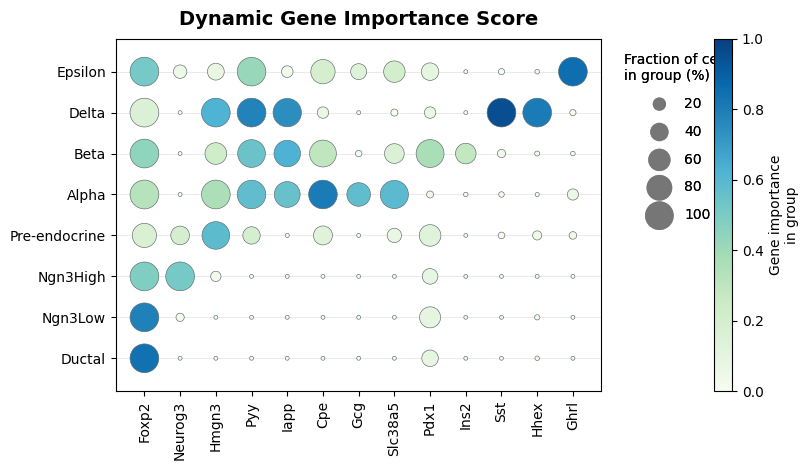

Dynamic Gene Importance Score

MARKER_GENES = [
    "FOXP2", "NEUROG3", "HMGN3", "PYY", "IAPP", "CPE", "GCG",
    "SLC38A5", "PDX1", "INS2", "SST", "HHEX", "GHRL",
]
MARKER_LABELS = {
    "FOXP2": "Foxp2",
    "NEUROG3": "Neurog3",
    "HMGN3": "Hmgn3",
    "PYY": "Pyy",
    "IAPP": "Iapp",
    "CPE": "Cpe",
    "GCG": "Gcg",
    "SLC38A5": "Slc38a5",
    "PDX1": "Pdx1",
    "INS2": "Ins2",
    "SST": "Sst",
    "HHEX": "Hhex",
    "GHRL": "Ghrl",
}

attention = ad.read_h5ad(ATTENTION_H5AD)
if "clusterid" not in attention.obs:
    attention.obs["clusterid"] = attention.obs["cell_type"].astype(str).map({
        "Ngn3 low EP": "Ngn3Low",
        "Ngn3 high EP": "Ngn3High",
    }).fillna(attention.obs["cell_type"].astype(str))

available_markers = require_genes(attention, MARKER_GENES)
marker_scores = as_dense(attention[:, available_markers].X)
marker_scores = minmax_columns(marker_scores)

score_df = pd.DataFrame(marker_scores, columns=available_markers, index=attention.obs_names)
score_df["clusterid"] = attention.obs["clusterid"].astype(str).values
score_df.head()

	FOXP2	NEUROG3	HMGN3	PYY	IAPP	CPE	GCG	SLC38A5	PDX1	INS2	SST	HHEX	GHRL	clusterid
0	0.755162	0.020473	0.004234	0.011028	0.016628	0.023333	0.015215	0.017793	0.080422	0.027896	0.021940	0.025587	0.014216	Ngn3Low
1	0.777351	0.024355	0.006867	0.009319	0.015361	0.023088	0.014962	0.016759	0.069372	0.029259	0.022845	0.069163	0.013144	Ngn3Low
2	0.881297	0.004649	0.010287	0.011557	0.018305	0.029824	0.019881	0.020477	0.134617	0.034727	0.028679	0.008866	0.017517	Ngn3Low
3	0.705656	0.051997	0.006194	0.010792	0.013806	0.023002	0.014517	0.016068	0.109997	0.026764	0.020390	0.021011	0.012446	Ngn3Low
4	0.694818	0.106666	0.006746	0.009698	0.013946	0.022039	0.013302	0.015491	0.117015	0.026374	0.019499	0.021170	0.012285	Ngn3Low

score_cutoff = 0.10
long_scores = score_df.melt(id_vars="clusterid", var_name="gene", value_name="score")
summary = (
    long_scores.groupby(["clusterid", "gene"], observed=True)
    .agg(
        mean_score=("score", "mean"),
        fraction=("score", lambda values: 100 * (values > score_cutoff).mean()),
    )
    .reset_index()
)

grid = pd.MultiIndex.from_product([CELLTYPE_ORDER, available_markers], names=["clusterid", "gene"]).to_frame(index=False)
summary = grid.merge(summary, on=["clusterid", "gene"], how="left").fillna({"mean_score": 0.0, "fraction": 0.0})
summary["x"] = summary["gene"].map({gene: idx for idx, gene in enumerate(available_markers)})
summary["y"] = summary["clusterid"].map({name: idx for idx, name in enumerate(CELLTYPE_ORDER)})

fig, ax = plt.subplots(figsize=(8.2, 4.8))
size_scale = 4.2
scatter = ax.scatter(
    summary["x"],
    summary["y"],
    s=8 + summary["fraction"] * size_scale,
    c=summary["mean_score"],
    cmap="GnBu",
    vmin=0,
    vmax=1,
    edgecolor="#5E6A6A",
    linewidth=0.45,
)

ax.set_title("Dynamic Gene Importance Score", fontsize=14, weight="bold", pad=10)
ax.set_xticks(range(len(available_markers)))
ax.set_xticklabels([MARKER_LABELS.get(gene, title_case_gene(gene)) for gene in available_markers], rotation=90)
ax.set_yticks(range(len(CELLTYPE_ORDER)))
ax.set_yticklabels([display_celltype(name) for name in CELLTYPE_ORDER])
ax.set_xlim(-0.8, len(available_markers) - 0.2)
ax.set_ylim(-0.8, len(CELLTYPE_ORDER) - 0.2)
ax.grid(axis="y", color="#E6E6E6", linewidth=0.6)
ax.set_axisbelow(True)
for spine in ax.spines.values():
    spine.set_linewidth(0.8)

legend_levels = [20, 40, 60, 80, 100]
handles = [
    ax.scatter([], [], s=8 + level * size_scale, color="#6D6D6D", alpha=0.75, edgecolor="none")
    for level in legend_levels
]
size_legend = ax.legend(
    handles,
    [str(level) for level in legend_levels],
    title="Fraction of cells\nin group (%)",
    frameon=False,
    bbox_to_anchor=(1.02, 0.72),
    loc="center left",
    labelspacing=1.0,
)
ax.add_artist(size_legend)

cbar = fig.colorbar(scatter, ax=ax, fraction=0.046, pad=0.18)
cbar.set_label("Gene importance\nin group")

fig.tight_layout()
fig.savefig(FIGURE_DIR / "figure_d_dynamic_gene_importance.png", dpi=300, bbox_inches="tight")
plt.show()

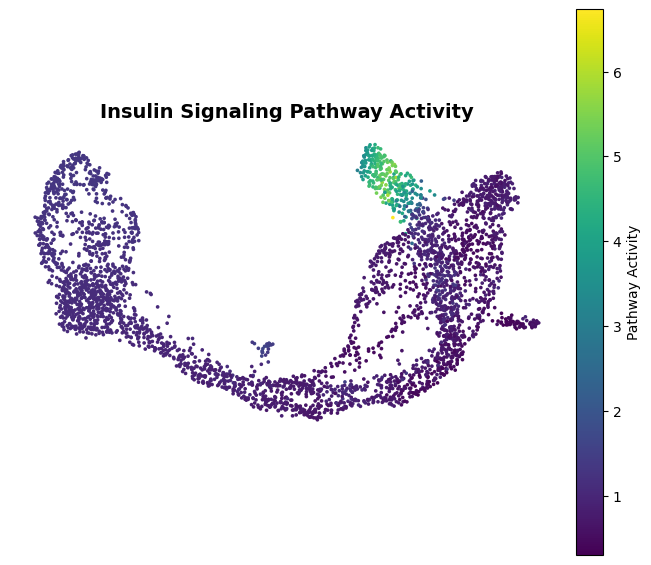

Insulin Signaling Pathway Activity

INSULIN_ACTIVITY_CSV is a precomputed per-cell table used to keep this tutorial lightweight. It stores the pathway activity values plus the cell metadata needed for plotting. The raw per-cell attention tensors used to make this table are larger than the notebook inputs and are not required for viewing the example analysis.

To recompute the table, save the raw per-cell stage-1 attention matrix before it is aggregated into TF-score or cell-type mean outputs, and use the same model gene order used by the checkpoint. The activity score is calculated by summing attention weights inside the insulin signaling gene set, restricted to regulator-target pairs present in the prior network. For one cell:

score = 0.0
for target in INSULIN_SIGNALING_GENES:
    for regulator in INSULIN_SIGNALING_GENES:
        if (regulator.upper(), target.upper()) in prior_edges:
            score += attention[gene_to_idx[target.upper()], gene_to_idx[regulator.upper()]]

If the saved attention tensor has multiple heads or layers, first average it to a gene-by-gene matrix. Then write one row per cell with cellIndex, pathway_activity, cellID, clusters, embedding1, and embedding2.

INSULIN_SIGNALING_GENES = [
    "Ins2", "Pik3r1", "Pik3r3", "Akt3", "Calm2", "Calml4", "Pygl", "Pde3b",
    "Prkacb", "Prkar2a", "Prkar1b", "Exoc7", "Gck", "Foxo1", "G6pc2", "Bad",
    "Shc2", "Braf", "Mapk8", "Mapk10", "Inppl1", "Inpp5a",
]

pathway_activity = pd.read_csv(INSULIN_ACTIVITY_CSV)
pathway_activity.head()

	cellIndex	pathway_activity	cellID	clusters	embedding1	embedding2
0	0	0.979330	AAACCTGAGAGGGATA	Pre-endocrine	6.143066	-0.063644
1	1	1.099439	AAACCTGAGCCTTGAT	Ductal	-9.906417	0.197778
2	2	0.748969	AAACCTGAGGCAATTA	Alpha	7.559791	0.583762
3	3	1.272176	AAACCTGCATCATCCC	Ductal	-11.283765	4.218998
4	4	1.067271	AAACCTGGTAAGTGGC	Ngn3 high EP	1.721565	-4.753407

fig, ax = plt.subplots(figsize=(6.6, 5.8))
scatter = ax.scatter(
    pathway_activity["embedding1"],
    pathway_activity["embedding2"],
    c=pathway_activity["pathway_activity"],
    cmap="viridis",
    s=7,
    linewidth=0,
)
ax.set_title("Insulin Signaling Pathway Activity", fontsize=14, weight="bold", pad=10)
ax.set_xlabel("UMAP 1")
ax.set_ylabel("UMAP 2")
ax.set_aspect("equal", adjustable="box")
ax.axis("off")
cbar = fig.colorbar(scatter, ax=ax, fraction=0.046, pad=0.02)
cbar.set_label("Pathway Activity")

fig.tight_layout()
fig.savefig(FIGURE_DIR / "figure_e_insulin_signaling_activity.png", dpi=300, bbox_inches="tight")
plt.show()

pathway_activity_by_celltype = (
    pathway_activity.assign(clusterid=pathway_activity["clusters"].replace({
        "Ngn3 low EP": "Ngn3Low",
        "Ngn3 high EP": "Ngn3High",
    }))
    .groupby("clusterid", observed=True)["pathway_activity"]
    .describe()
    .reindex(CELLTYPE_ORDER)
)
pathway_activity_by_celltype

	count	mean	std	min	25%	50%	75%	max
clusterid
Ductal	916.0	1.173289	0.090704	1.009788	1.092108	1.157189	1.253498	1.331086
Ngn3Low	262.0	1.132525	0.105283	0.983953	1.052862	1.098461	1.219752	1.511620
Ngn3High	642.0	0.867863	0.161062	0.551875	0.754409	0.861131	0.955882	1.636565
Pre-endocrine	592.0	0.677295	0.175751	0.302864	0.553564	0.646192	0.781494	1.511066
Alpha	481.0	0.704523	0.148855	0.456200	0.579345	0.700906	0.803784	1.489411
Beta	591.0	2.473439	1.716618	0.501347	0.965723	1.358620	4.192955	6.732128
Delta	70.0	0.500472	0.132094	0.358377	0.399241	0.445940	0.581606	0.973334
Epsilon	142.0	0.715686	0.052275	0.593212	0.678203	0.711773	0.750364	0.834830

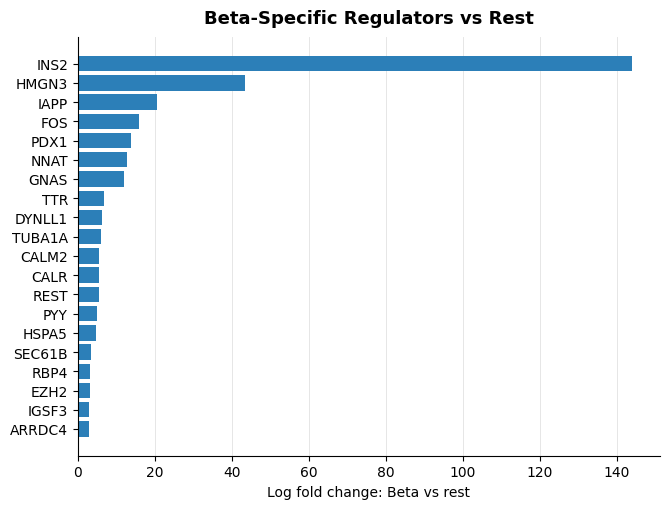

Type-Specific TF Discovery

scanpy.tl.rank_genes_groups is run on the attention-derived regulator score matrix. Without groups or reference, Scanpy ranks each cell type against the rest of the dataset. The Beta list is then sorted by logfoldchanges in the Beta column.

attention_scores = attention.copy()
attention_scores.obs["clusterid"] = pd.Categorical(
    attention_scores.obs["clusterid"].astype(str),
    categories=RANK_GROUP_ORDER,
    ordered=True,
)
attention_scores

AnnData object with n_obs × n_vars = 3696 × 1791
    obs: 'clusterid', 'cell_type'

# Run Scanpy differential ranking on the attention score matrix.
sc.tl.rank_genes_groups(attention_scores, "clusterid", method="t-test", key_added="t-test", use_raw=False)
sc.tl.rank_genes_groups(
    attention_scores,
    "clusterid",
    method="t-test_overestim_var",
    key_added="t-test_ov",
    use_raw=False,
)
sc.tl.rank_genes_groups(
    attention_scores,
    "clusterid",
    method="wilcoxon",
    key_added="wilcoxon",
    use_raw=False,
    tie_correct=True,
)

beta_one_vs_rest = sc.get.rank_genes_groups_df(attention_scores, group="Beta", key="wilcoxon")
beta_one_vs_rest = beta_one_vs_rest.rename(columns={"names": "regulator"})
beta_one_vs_rest.to_csv(FIGURE_DIR / "beta_regulators_scanpy_wilcoxon_one_vs_rest.csv", index=False)
beta_specific_tfs = (
    beta_one_vs_rest.query("pvals_adj <= 0.05 and scores > 0")
    .sort_values("logfoldchanges", ascending=False)
    .head(30)
)
beta_specific_tfs.to_csv(FIGURE_DIR / "beta_specific_tfs_vs_rest_top30.csv", index=False)
display(beta_specific_tfs)

# Positional extraction from adata.uns["wilcoxon"].
# With RANK_GROUP_ORDER, index 0 is Ngn3Low and index 1 is Beta.
rank_groups_by_position = pd.DataFrame({
    "group_index": range(len(attention_scores.uns["wilcoxon"]["names"].dtype.names)),
    "group_name": list(attention_scores.uns["wilcoxon"]["names"].dtype.names),
})
display(rank_groups_by_position)

	regulator	scores	logfoldchanges	pvals	pvals_adj
78	INS2	14.850327	143.993057	6.923081e-50	6.525915e-49
128	HMGN3	9.773632	43.448711	1.461177e-22	5.406959e-22
8	IAPP	29.016233	20.586931	4.106259e-185	5.253079e-183
127	FOS	9.836802	15.942451	7.815558e-23	2.928382e-22
3	PDX1	33.795540	13.940424	2.293330e-250	1.026839e-247
1	NNAT	37.057472	12.705257	1.361306e-300	1.219049e-297
68	GNAS	15.891160	11.971339	7.296437e-57	8.066617e-56
50	TTR	18.748365	6.740270	1.996353e-78	3.471329e-77
48	DYNLL1	18.920925	6.352026	7.669524e-80	1.360012e-78
9	TUBA1A	28.342644	6.172879	1.031334e-176	1.154449e-174
83	CALM2	14.071762	5.577945	5.664064e-45	4.611063e-44
47	CALR	18.922230	5.554480	7.482122e-80	1.340048e-78
114	REST	11.216324	5.474579	3.390754e-29	1.668363e-28
18	PYY	25.685898	5.027620	1.680221e-145	9.403985e-144
6	HSPA5	29.335363	4.633273	3.673140e-189	5.482162e-187
2	SEC61B	34.085316	3.526182	1.217431e-254	7.268060e-252
22	RBP4	24.131279	3.064357	1.174199e-128	5.257477e-127
198	EZH2	4.902114	3.058743	9.481059e-07	1.343400e-06
45	IGSF3	19.666351	2.923172	4.188503e-86	8.066245e-85
236	ARRDC4	2.672083	2.800261	7.538204e-03	8.501841e-03
35	CHGB	21.437046	2.755008	6.032355e-102	1.688117e-100
0	TRIM47	38.424515	2.703547	0.000000e+00	0.000000e+00
25	TTYH1	23.168863	2.621251	9.384674e-119	3.735100e-117
4	DLK1	32.852322	2.585310	1.055309e-236	3.780118e-234
5	MOSPD1	32.460712	2.560460	3.824583e-231	1.141638e-228
62	CCND1	16.668463	2.276447	2.222348e-62	2.802976e-61
16	RAP1B	26.055569	2.129719	1.163440e-149	7.185247e-148
17	GNG12	25.764826	1.664000	2.198992e-146	1.270450e-144
12	PDIA6	27.347610	1.624670	1.152940e-164	9.832929e-163
189	TESC	5.508282	1.508494	3.623519e-08	5.653068e-08

	group_index	group_name
0	0	Ngn3Low
1	1	Beta
2	2	Alpha
3	3	Ductal
4	4	Ngn3High
5	5	Delta
6	6	Epsilon
7	7	Pre-endocrine

# Explicit pairwise comparison: Beta versus Ngn3Low.
pairwise = attention_scores[attention_scores.obs["clusterid"].isin(["Beta", "Ngn3Low"])].copy()
pairwise.obs["clusterid"] = pd.Categorical(
    pairwise.obs["clusterid"].astype(str),
    categories=["Ngn3Low", "Beta"],
    ordered=True,
)

sc.tl.rank_genes_groups(
    pairwise,
    "clusterid",
    groups=["Beta"],
    reference="Ngn3Low",
    method="wilcoxon",
    key_added="wilcoxon_beta_vs_ngn3low",
    use_raw=False,
    tie_correct=True,
)

beta_vs_ngn3low = sc.get.rank_genes_groups_df(pairwise, group="Beta", key="wilcoxon_beta_vs_ngn3low")
beta_vs_ngn3low = beta_vs_ngn3low.rename(columns={"names": "regulator"})
beta_vs_ngn3low.to_csv(FIGURE_DIR / "beta_vs_ngn3low_scanpy_wilcoxon.csv", index=False)

beta_vs_ngn3low_top30 = (
    beta_vs_ngn3low.query("pvals_adj <= 0.05 and scores > 0")
    .sort_values("logfoldchanges", ascending=False)
    .head(30)
)
beta_vs_ngn3low_top30.to_csv(FIGURE_DIR / "beta_specific_tfs_vs_ngn3low_top30.csv", index=False)
display(beta_vs_ngn3low_top30)

	regulator	scores	logfoldchanges	pvals	pvals_adj
33	HMGN3	18.885239	296.303192	1.508519e-79	2.059267e-79
144	INS2	3.448934	138.319168	5.628047e-04	5.870607e-04
53	FOS	13.857791	31.156979	1.141325e-43	1.384900e-43
6	GNAS	23.291525	28.969370	5.402930e-120	5.625958e-119
64	HSPA8	12.441044	26.564337	1.564450e-35	1.855583e-35
31	IAPP	19.079844	25.832048	3.713747e-81	5.108541e-81
50	NNAT	14.330282	25.613579	1.415450e-46	1.737539e-46
115	ACTB	6.168558	20.965637	6.891570e-10	7.426475e-10
4	TRIM47	23.308910	18.749823	3.600560e-120	4.763027e-119
24	MOSPD1	20.607502	18.563549	2.350561e-94	3.502375e-94
51	TTYH1	14.201574	17.875153	8.957740e-46	1.094360e-45
75	IGSF3	10.795223	17.185690	3.625813e-27	4.194981e-27
99	TESC	8.093443	16.907015	5.800141e-16	6.424275e-16
5	SLC25A5	23.297548	15.379690	4.694245e-120	5.333300e-119
15	CALM2	22.624271	15.265243	2.500639e-113	4.937866e-113
27	PDX1	20.002249	13.592208	5.264365e-89	7.622051e-89
79	H3F3B	10.714921	11.396209	8.663157e-27	9.977951e-27
34	TTR	18.488804	11.260492	2.541307e-76	3.437675e-76
0	PYY	23.327314	9.836381	2.342355e-120	4.763027e-119
29	CALR	19.413620	9.730735	5.920498e-84	8.297035e-84
37	DYNLL1	17.297688	9.164405	4.896505e-67	6.401197e-67
8	CHGB	23.228565	7.888491	2.343163e-119	1.182142e-118
16	TUBA1A	22.203434	7.789117	3.181911e-109	5.495470e-109
1	RBP4	23.322552	7.134286	2.618085e-120	4.763027e-119
68	HSP90AA1	11.821387	6.193028	3.026461e-32	3.566047e-32
17	HSPA5	22.011541	5.822803	2.232686e-107	3.723222e-107
80	SLC38A5	10.572734	5.474253	3.986998e-26	4.580317e-26
10	SEC61B	23.166809	5.219037	9.842641e-119	3.497653e-118
39	CHGA	16.809673	5.003044	2.073093e-63	2.682738e-63
2	RAP1B	23.321348	3.523076	2.692841e-120	4.763027e-119

top_to_plot = beta_specific_tfs.head(20).iloc[::-1]
fig, ax = plt.subplots(figsize=(6.8, 5.2))
ax.barh(top_to_plot["regulator"], top_to_plot["logfoldchanges"], color="#2C7FB8")
ax.set_xlabel("Log fold change: Beta vs rest")
ax.set_ylabel("")
ax.set_title("Beta-Specific Regulators vs Rest", fontsize=13, weight="bold", pad=10)
ax.grid(axis="x", color="#E6E6E6", linewidth=0.7)
ax.set_axisbelow(True)
for spine in ["top", "right"]:
    ax.spines[spine].set_visible(False)

fig.tight_layout()
fig.savefig(FIGURE_DIR / "beta_specific_tfs_vs_rest.png", dpi=300, bbox_inches="tight")
plt.show()

TF Top Target Genes

Cell-type mean attention networks can also be used to inspect the strongest target genes for a selected regulator. The example below uses the Beta mean attention network exported from the provided stage-1 pancreas checkpoint and retrieves the top 25 targets of PDX1.

reference_genes = [line.strip().upper() for line in GENE_ORDER.read_text().splitlines() if line.strip()]
gene_to_idx = {gene: idx for idx, gene in enumerate(reference_genes)}

beta_mean_attention = sparse.load_npz(BETA_MEAN_ATTENTION_NPZ).toarray()
if beta_mean_attention.shape != (len(reference_genes), len(reference_genes)):
    raise ValueError(
        f"Beta attention matrix shape {beta_mean_attention.shape} does not match gene order length {len(reference_genes)}"
    )

def rank_tf_targets_from_mean_attention(matrix, genes, tf_gene, top_k=25):
    tf_key = tf_gene.upper()
    if tf_key not in gene_to_idx:
        raise KeyError(f"{tf_gene} is not present in the reference gene order")
    tf_idx = gene_to_idx[tf_key]
    weights = np.asarray(matrix[:, tf_idx], dtype=float)
    order = np.argsort(-weights)
    rows = []
    for target_idx in order:
        target = genes[target_idx]
        if target == tf_key:
            continue
        rows.append({
            "rank": len(rows) + 1,
            "regulator": title_case_gene(tf_key),
            "target_gene": title_case_gene(target),
            "target_gene_upper": target,
            "weight": weights[target_idx],
        })
        if len(rows) >= top_k:
            break
    return pd.DataFrame(rows)

pdx1_beta_top25 = rank_tf_targets_from_mean_attention(beta_mean_attention, reference_genes, "PDX1", top_k=25)
pdx1_beta_top25.to_csv(FIGURE_DIR / "beta_pdx1_top25_targets.csv", index=False)
display(pdx1_beta_top25)

	rank	regulator	target_gene	target_gene_upper	weight
0	1	Pdx1	Sphkap	SPHKAP	0.377538
1	2	Pdx1	Pclo	PCLO	0.360077
2	3	Pdx1	Sntg1	SNTG1	0.326232
3	4	Pdx1	St18	ST18	0.260459
4	5	Pdx1	Prdm16	PRDM16	0.254502
5	6	Pdx1	Rfx6	RFX6	0.214374
6	7	Pdx1	Pnliprp1	PNLIPRP1	0.205907
7	8	Pdx1	Chst9	CHST9	0.200043
8	9	Pdx1	Mtss1	MTSS1	0.191846
9	10	Pdx1	Efcab1	EFCAB1	0.177671
10	11	Pdx1	Nkx2-2	NKX2-2	0.176846
11	12	Pdx1	Ttyh1	TTYH1	0.173887
12	13	Pdx1	Aff2	AFF2	0.170449
13	14	Pdx1	Papss2	PAPSS2	0.168306
14	15	Pdx1	Myt1l	MYT1L	0.164107
15	16	Pdx1	Tnr	TNR	0.164032
16	17	Pdx1	Emb	EMB	0.150766
17	18	Pdx1	Pyy	PYY	0.150329
18	19	Pdx1	Iapp	IAPP	0.150007
19	20	Pdx1	Rpgrip1	RPGRIP1	0.139450
20	21	Pdx1	Gstt2	GSTT2	0.138903
21	22	Pdx1	Npas3	NPAS3	0.138548
22	23	Pdx1	Habp2	HABP2	0.138320
23	24	Pdx1	Gcnt2	GCNT2	0.137287
24	25	Pdx1	Pax4	PAX4	0.136594
